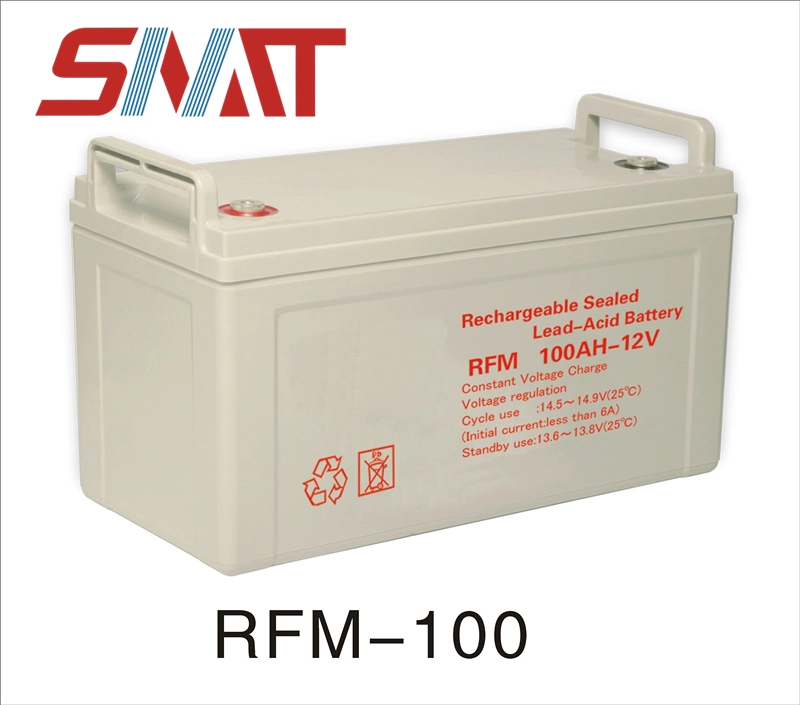

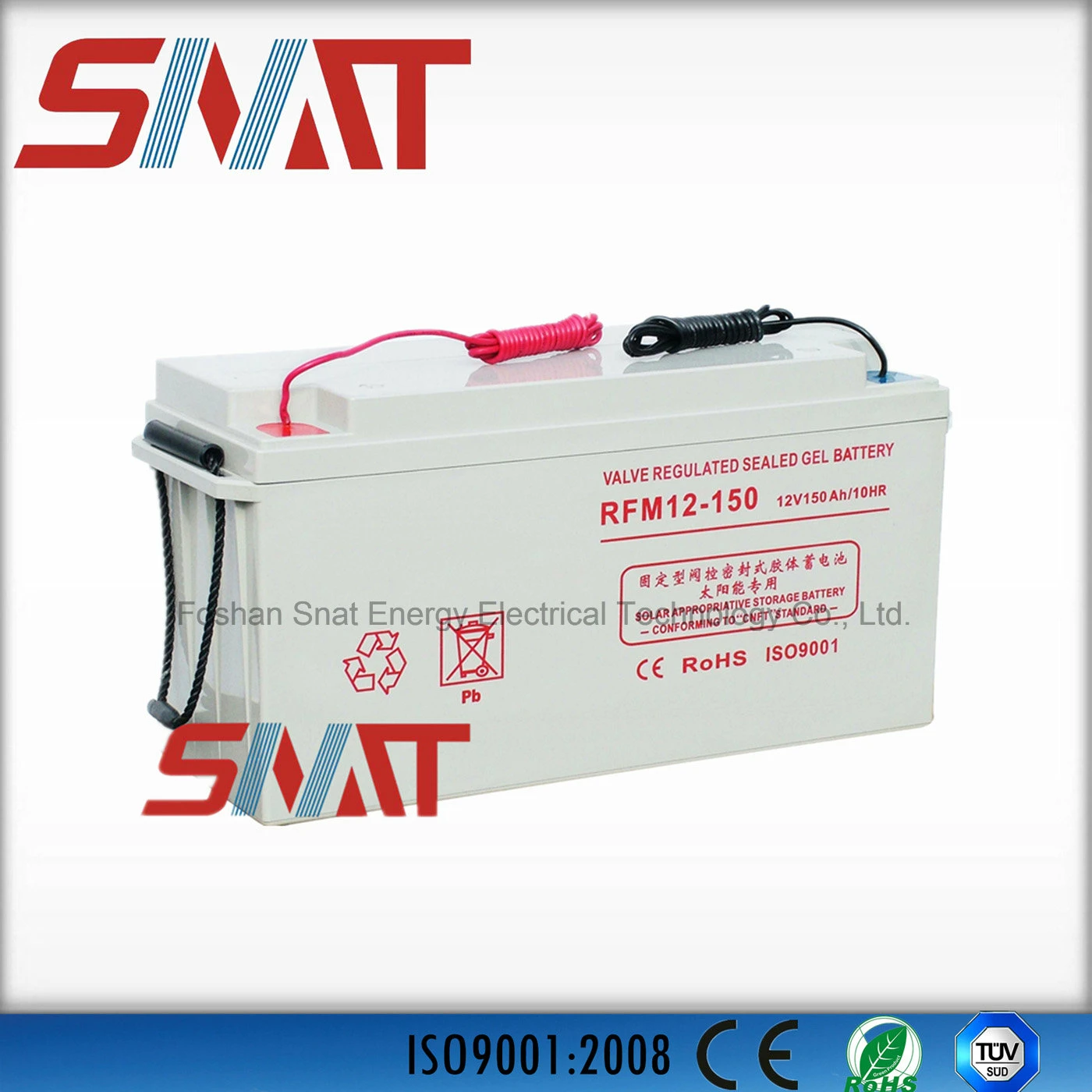

Active polymer gel batteries are special supporting products for solar power systems, wind power generation systems, uninterruptible power supplies (UPS), inverters, EPS, street lamps and more
All models 24AH/38AH/65/100AH/120AH/150AH/200 technical indexes
| Model | 24AH | 38AH | 65AH | 100AH | 120AH | 150AH | 200AH |
| Voltage | 12V | ||||||
| Internal resistance of battery | After the battery is fully charged (25ºC) | ≤10mΩ | |||||
| Battery capacity at different temperatures | 60ºC | 104% | |||||
| 25ºC | 100% | ||||||
| 0ºC | 95% | ||||||
| -50ºC | 86% | ||||||
| Rated capacity (Ah) at different hours | 10hr | 100%C10 | |||||
| 30hr | 110%C10 | ||||||
| Storage capacity of battery | One month (25ºC) | 95% | |||||
| Three month (25ºC) | 90% | ||||||
| Six month (25ºC) | 88% | ||||||
| Maximum charge current | 02.5C10 (A) | ||||||
| Charge voltage limit | Voltage of equalizing charge | 14.4V/12V-25mV/C | |||||
| Voltage of floating charge | 13.5V/12V-20mV/C | ||||||
| External dimension (L*W*H mm) | 165*126*126 | 198*166*170 | 350*166*179 | 329*172*214 | 406*173*208 | 483*170*239 | 522*239*218 |
| Net weight (KG) | 8.5KG | 12.5KG | 20.5KG | 31KG | 36KG | 49KG | 62KG |
| Package/material | Carton package | ||||||
Main features
- Great charge and discharge bearing capacity. It can bear large-current charge (0.8C-1C) and large-current discharge (30C discharge current within eight seconds) without damage
- High safety and reliability, provided with a automatic safety valve
- Long service life
- Low self-discharge rate
- Great conductivity
- Great directionality
- Environment friendliness
- A longer life and deep cycle
Foshan SNAT Energy Electrical Technology Co. Ltd is established in 2004. As a world's leading supplier for solutions for electric energy and new energy, SNAT has powerful strength and is engaged in field of solar inverters, solar inverters with built-in solar controller, solar controllers, UPS, which are used for household, telecommunication, electricity, infrastructure and industrial markets. At the same time, our company is concurrently engaged in solar panels, batteries for solar power system. All products purchased by our company have our warranty commitment, parts will be shipped for free during warranty period. We have professional technical team and are focus on customers' demands, continuous innovation, and establish good cooperation with more and more clients. The leading-edge technology has become a competitive advantage for our customers and business. SNAT is becoming a strong brand step by step depending on high quality and strict self-demanding.
Our services
1. How's the delivery time ?
A. usually it will take about 15 days for production
Q 2. Tell me the standard of package?
A. For the small capacity, it use carton, but for big capacity, we should use strong wooden case for protection.
Q 3. What kind of material of transformer?
A. 100% copper
Q 4.Would you accept to use our logo ?
A.If you have good quantity,it absolute no problem to do OEM.
Q 5.We want to know month capacity.
A. It depends on which model.For example for relay type small capacity , month capacity can reach near 20000pcs and big capacity near 5000pcs.
First-class attitude and professional response help you find the right product,please contact us
