*Product Description
The DSE3110 is an outstanding compact control module that provides a comprehensive range of features for single-set applications. The controller can be used in manual or auto start mode..

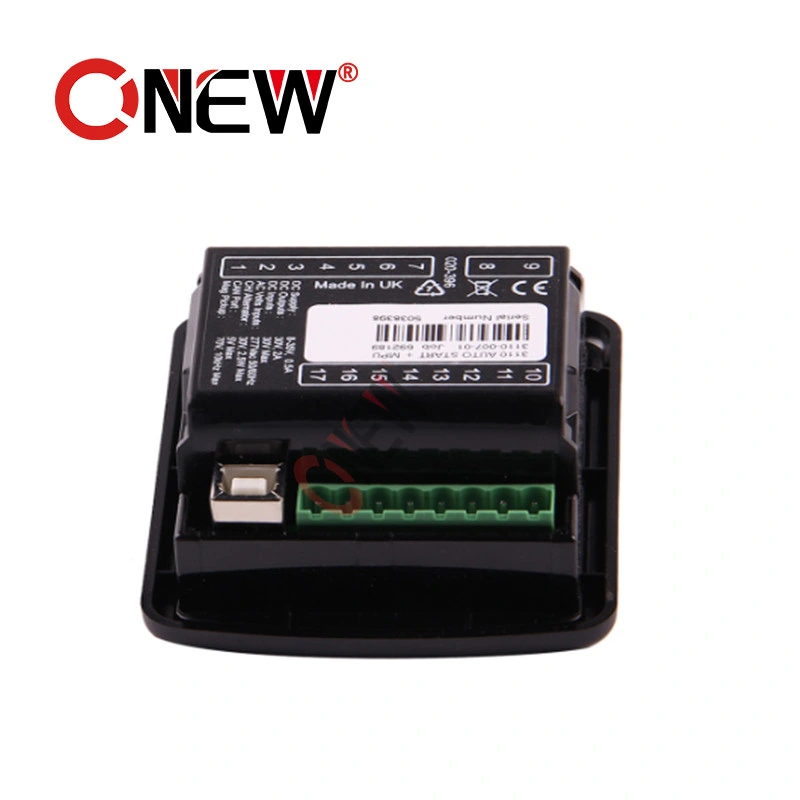

DSE3110 Manual & Auto Start Control Module
The DSE3110 is an outstanding compact control module that provides a comprehensive range of features for single-set
applications. The controller can be used in manual or auto start mode.
| SPECIFICATION | ||
| DC SUPPLY | Continuous Votlage Rating | 8 V to 35 V continuous |
| Maximum Operating Current | 375 mA at 12 V, 160 mA at 24 V | |
| Maxinmum Standby Current | 160 mA at 12 V, 80 mA at 24 V | |
| Maxinmum Sleep Current | 35 mA at 12 V, 32mA at 24 V | |
| Cranking Droputs | Able to survive 0 V for 50 mS, providing supply was at least | |
| 10 V before dropout and supply recovers to 5 V | ||
| This is achieved without the need for internal batteries | ||
| INPUTS | Digttal Inputs A to F | Negative switching |
| Analogue Inputs D | Configurable as: | |
| Negative switching digital input | ||
| 0 V to 10 V,4 mA to 20 mA,0 to 240 | ||
| Analogue Inputs A TO C | Configurable as: | |
| Negative switching digital input:0 to 480 | ||
| OUTPUTS | 15 A at supply voltage | |
| Output B (Start) | 15 A at supply voltage | |
| Auxiliary Outputs C, D, E &F | 2A DC at supply voltage | |
| GENERATOR & MAINS (UTILITY) | Voltage Range | 15 V to 415 V AC (Ph to N),26 V to 719 V AC (Ph to Ph) |
| Frequency Range | 3.5 Hz to 75 Hz | |
How to choose a suitable Generator Controller?
1. Cheap Generator Controller : DSE501K, DSE701, DSE702, DSE704, DSE3110, DSE4520, DSE4620 (for low cost small power generators)
2. More Functions Genset Controller: DSE5110, DSE5220, DSE6020, DSE6120, DSE7210, DSE7220, DSE7310, DSE7320, MRS-10, MRS-16, AMF-20, AMF-25 (for high power generator)
3. More Languages Generator Controller: DSE6120, DSE7210, DSE7220, DSE7310, DSE7320, MRS-10, MRS-16, AMF-20, AMF-25 (Avaliable Languages: English, Spanish, Portuguese, French, German, Russian, Chinese and etc.)
4. AMF Controller Modules: DSE704, DSE720, DSE5220, DSE6120, DSE7220, DSE7320; AMF-20, AMF-25 (Auto Mains Failure Generator Control Modules)
5. Synchronising and Load Share Controller: DSE8610, DSE8620, DSE8660, ICNT-MINT, ICNT-MCNT, ICNT-SPTM
6. Canbus ECU Communications Generator Control Panel: MRS-16, AMF-25, DSE7210, DSE7220, DSE7310, DSE7320, DSE3110 ECU, DSE4520, DSE7320 MKII
*PRODUCT DETAILS
Warranty The products will be tested stricly one by one before delivery.
Germany production processes and quality standards to guarantee the good quality.
The warranty period is 12 months from shipping, but excludes the case of damaged by people.
Please help us to find out the problem, and we will offer free components for service.
All products will be well packaged and will not be damaged in transit.
