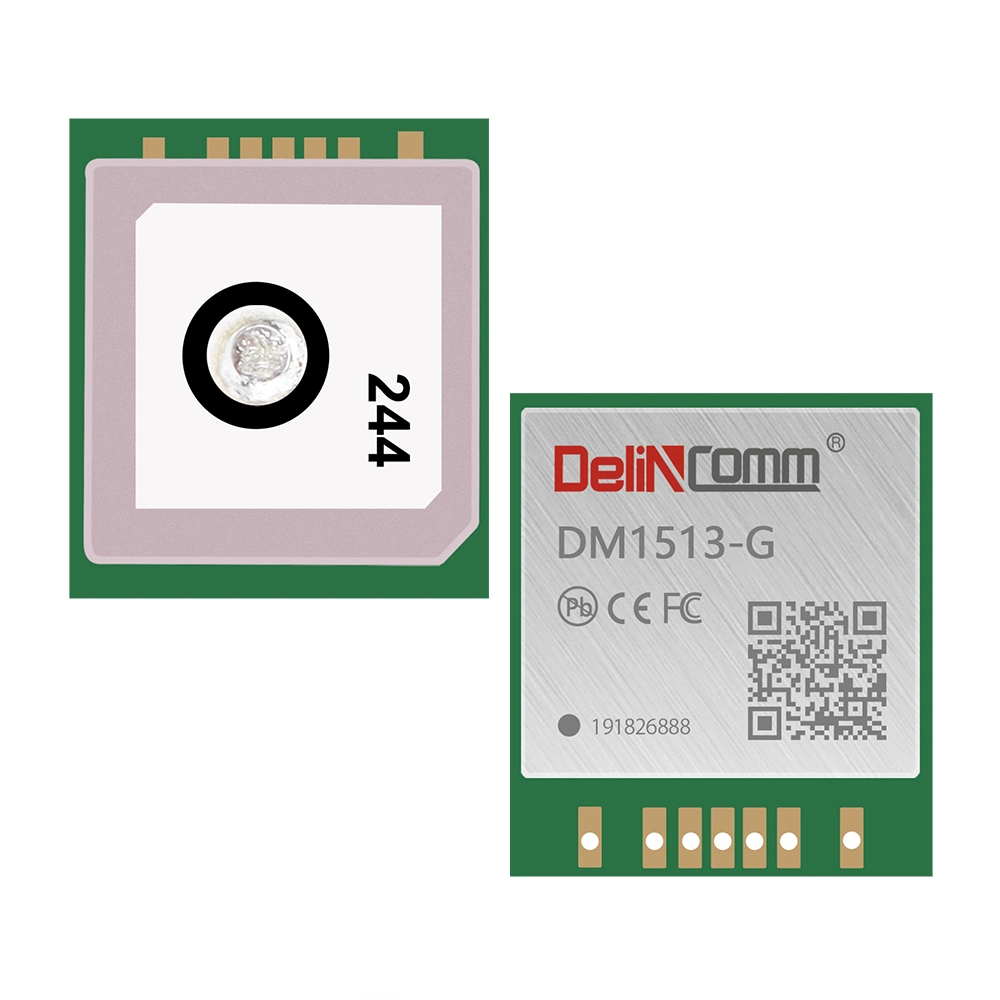

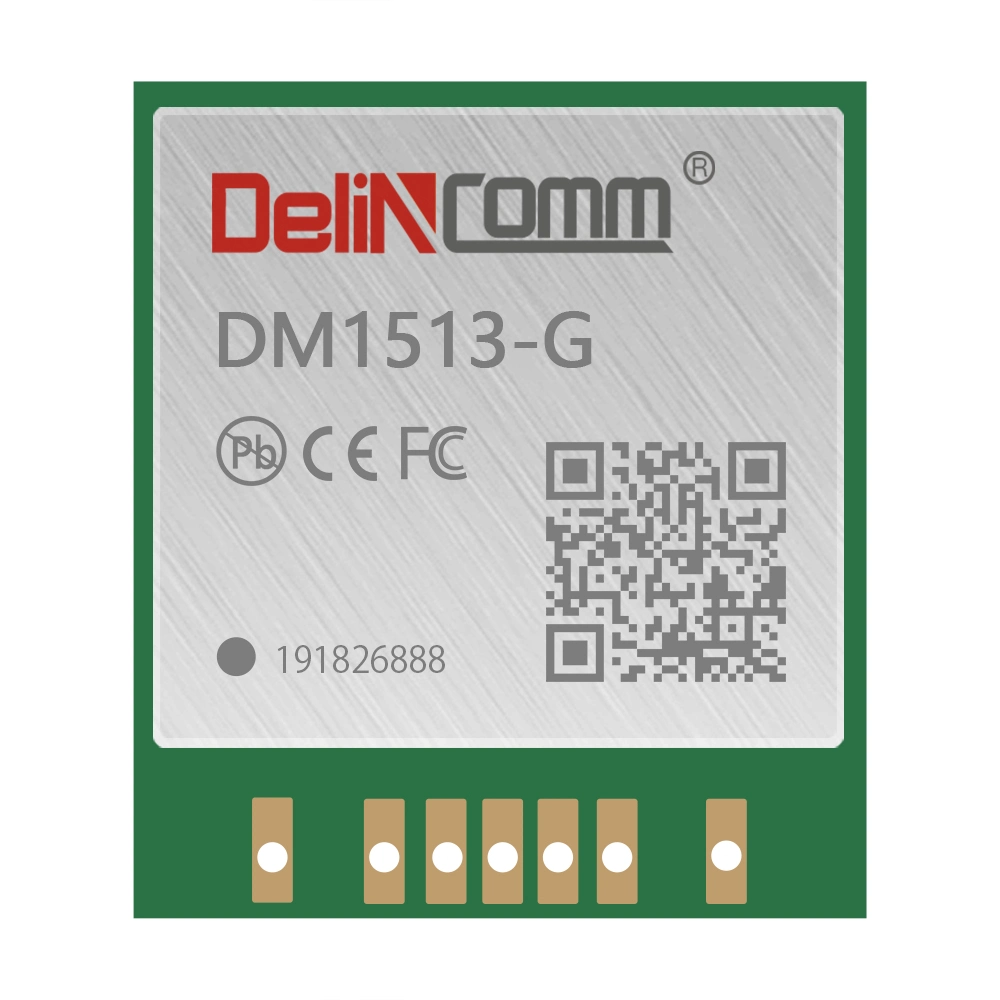

Ttl, 9600BPS, 15*13mm GPS&Glonass Smart Antenna Module GNSS module

  The DM1513-G is a complete GPS&GLONASS engine module that features super sensitivity, ultra low power and small form factor. The GPS&GLONASS signal is applied to the antenna input of module, and a complete serial data message with position, velocity and time information is presented at the serial interface with NMEA protocol or custom protocol. Its -165dBm tracking sensitivity extends posi tioning coverage into place like urban canyons and dense foliage environment where the GPS&GLONASS was not possible before. The small form factor and low power consumption make the module easy to inte grate into portable device like PNDs, mobile phones, cameras and vehicle navigation systems.
Applications
  1. LBS (Location Based Service)
  2. PND (Portable Navigation Device)
  3. Vehicle navigation system
  4. Mobile phone
Features
  1. Build on high performance, low-power MediaTek MT3333 chip set
  2. Ultra high Track sensitivity: -165dBm
  3. Extremely fast TTFF at low signal level
  4. Built in high gain LNA
  5. Low power consumption: Max 40mA@3.3V
  6. NMEA-0183 compliant protocol or custom protocol
  7. Operating voltage: 2.8V to 4.3V
  8. Operating temperature range:-40to85ºC
  9. Patch Antenna Size: 12x12x4mm
  10. Module Size: 15.2x13.0x6.4mm
  11. Communication type: UART/TTL
  12. RoHS compliant (Lead-free)

Ttl, 9600BPS, 15*13mm GPS&Glonass Smart Antenna Module Gnss Module

Key Feature
ParameterSpecification
Power Supply
  • Supply voltage: 2.8V~4.3V Typical: 3.3V
Power Consumption

  • Acquisition: 40mA @VCC=VBAT=3.3V
  • Tracking: 35mA @VCC=VBAT=3.3V
  • Standby: 2.0mA @VCC=VBAT=3.3V
  • Backup: 15uA @VBAT=3.3V
Receiver Type
  • Code 66 search channels, 22 synchronous tracking channels
  • GPS&&QZSS L1 1575.42MHz C/A , GLONASS L1OF 1602MHz                                                                                      SBAS: WAAS, EGNOS, MSAS, GAGAN

Sensitivity
  • Tracking: -165dBm
  • Re-acquisition: -156dBm
  • Acquisition: -148dBm

TTFF (EASY enabled)

  • Cold start: 15s typ @-130dBm
  • Warm start: 5s typ @-130dBm
  • Hot start : 1s typ @-130dBm

TTFF (EASY disabled)
  • Cold start(Autonomous): 35s typ @-130dBm
  • Warm start (Autonomous): 30s typ @-130dBm
  • Hot start (Autonomous): 1s typ @-130dBm
Horizontal Position Accuracy (Autonomous)
  • <2.5m CEP @-130 dBm
Max Update Rate
  • Up to 10Hz,1Hz by fault
Accuracy of 1PPS Signal
  • Typical accuracy: ±10ns, Time pulse width: 100ms
Acceleration Accuracy
  • Without aid: 0.1m/s²

Dynamic Performance
  • Maximum altitude: 18,000m
  • Maximum velocity: 515m/s
  • Acceleration: 4G


UART Port
  • UART Port: TXD and RXD
  • Supports baud rate from 4800bps to 115200bps, 9600bps by default
  • UART port is used for NMEA output, MTK proprietary
  • commands input and firmware upgrade
Temperature Range
  • Normal operation: -40°C ~ +85°C
  • Storage temperature: -45°C ~ +125°C
Physical Characteristics
  • Size: 15.2±0.20 ×13±0.20 ×6.4±0.20mm
  • Weight: Approx. 3.8g


Producing Spot
