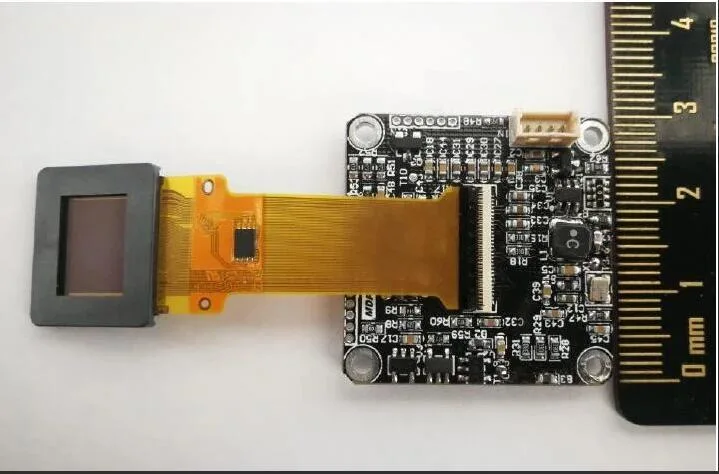

0.38 Inch 1746*1000 Micro OLED Microdisplay LCD Module


CX050WD is a 1024 × 768 high-resolution emissive OLED micro display module.

This product embeds a high quality 2D comb NTSC/PAL/SECAM video decoder and a high quality scaler.

It can encode NTSC/PAL/SECAM analog video signals into digital signal and scale it to 1024×768 resolutions and display it on 0.5' micro display (full screen).

Optional: Hue, brightness, saturation, contrast and sharpness can be adjusted by user through communication port, and these values are saved as default.

Product CX050WD
Power supplies DC 4.0~6.0V (typical 5V)
Typical power consumption <0.65W(total)
Number of pixels 1024 x 768 x 3 sub-pixels
active matrix = 2.4M dots
Pixel arrangement Square pixel arrangement
Pixel pitch 9.9μm x9.9μm
Active area 10.336mm x7.80mm (0.5' diagonal)
Luminance Typical: 300 Cd/m²
Max: 600 Cd/m²
Color Gamut 80% NTSC
White balance @ 300Cd/m2 (WB) 6500K
Grey levels per color (Ng) 256 Grey levels (32bit)
Number of colors 16E6 Colors
Control interface(Optinal) 3.3V RS232(TTL)
COM Setting 115200/N/8/1
Input video signal NTSC/PAL/SECAM(0~1.0Vpp)
Operating temperature range -30°C to +50°C
Storage temperature -40°C to +60°C
