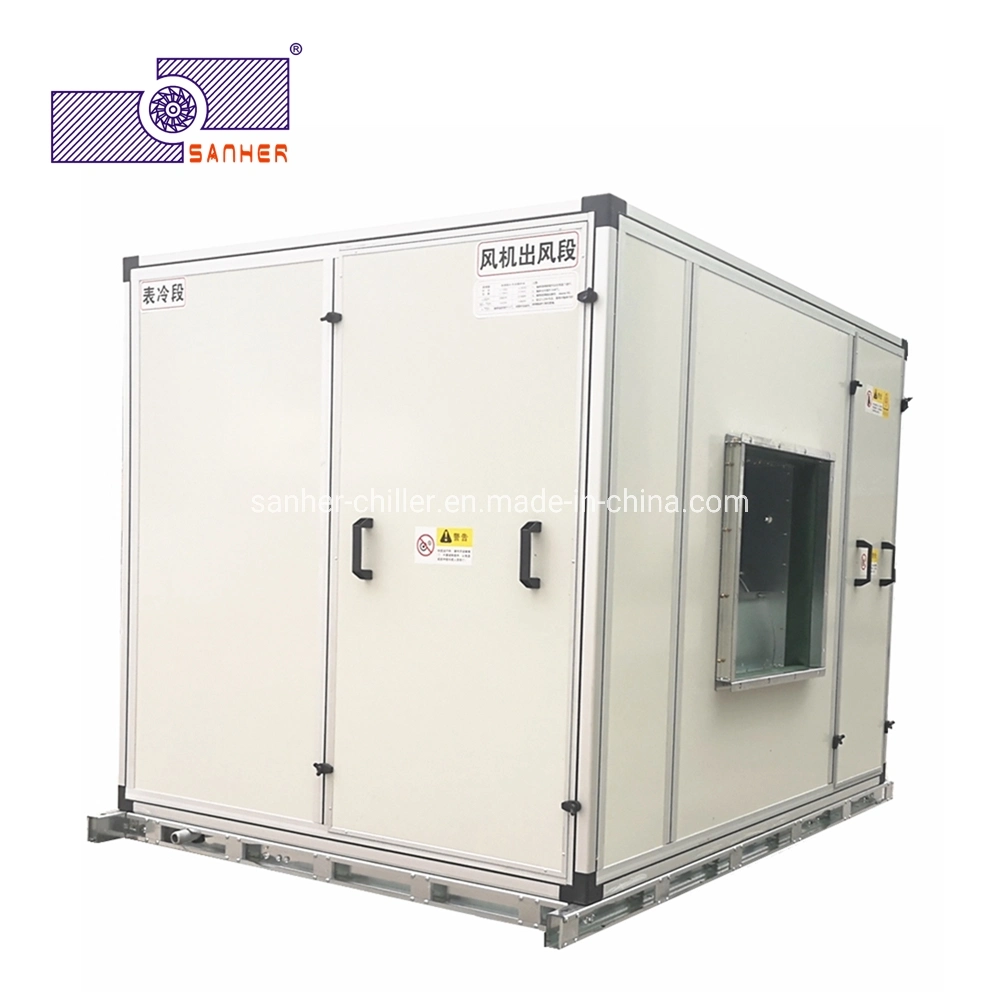

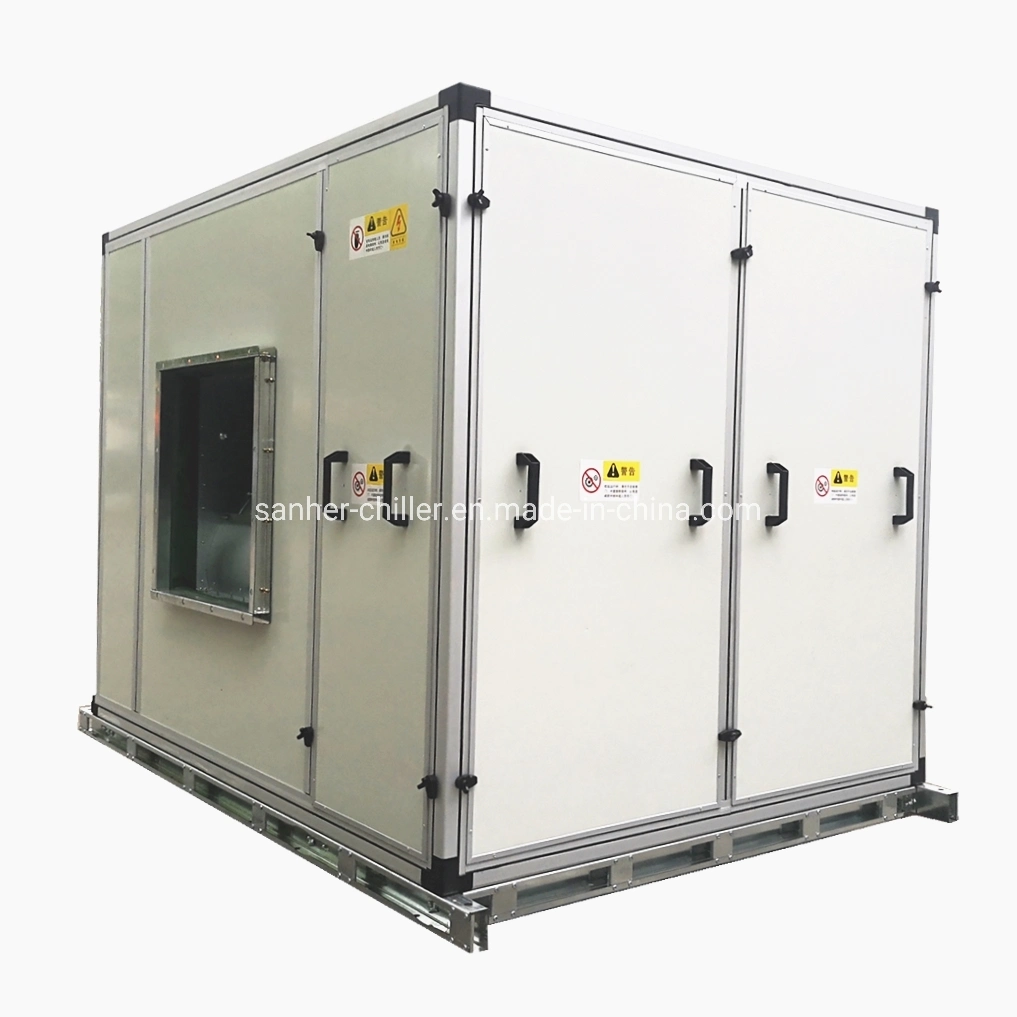

Heating and Cooling Air Cooled Module Chiller
1. Quiet operation. Low noise
2. Compact design , convenient to maintain
3. Stable quality and reliable performance.
4. Intelligent control, high efficiency.
Features:Technical Data
About SANHER
SANHE Freezing Machinery (Guangzhou)Co., Ltd. is a joint venture which was established by domestic Huizhuo and Japan Ronghe corporation with a total investment of 50 million Yuan in 2017. It located in Guangzhou Economic and Technological Development Zone . Combined with Japan R&D center and Guangdong University of Technology, We are committed to industrial chiller, central air conditioner, magnetic centrifugal chiller R&D and manufacture.
Workshop
1. Quiet operation. Low noise
2. Compact design , convenient to maintain
3. Stable quality and reliable performance.
4. Intelligent control, high efficiency.
Features:
1.Quiet operation.
Low noise with the latest fully enclosed low noise compressor and double soundproof structure.
Low noise with the latest fully enclosed low noise compressor and double soundproof structure.
2.Compact design. convenient to maintain
3.Stable quality and reliable performance.
It adopts the famous brands of refrigeration systems self-control parts, LG, OMRON controller components to ensure stable quality.
It adopts the famous brands of refrigeration systems self-control parts, LG, OMRON controller components to ensure stable quality.
4.Intelligent control, high efficiency.
The microcomputer controller adopts the fuzzy control algorithm, which has strong adaptability and high control precision. The relative humidity precision can be controlled at ±1%. The evaporator adopts internal thread and hydrophilic corrugated aluminum fins, the heat transfer coefficient is 67% higher than ordinary evaporator.
The microcomputer controller adopts the fuzzy control algorithm, which has strong adaptability and high control precision. The relative humidity precision can be controlled at ±1%. The evaporator adopts internal thread and hydrophilic corrugated aluminum fins, the heat transfer coefficient is 67% higher than ordinary evaporator.
| Model SHKR- | 15WJH | 35WJH | 50WJH | 65WJH | 80WJH | |||||
| Air flow direction | Top | Side | Top | Side | Top | Side | Top | Side | ||
| Cooling Capacity | KW | 15 | 35 | 50 | 65 | 80 | ||||
| Electric Heating Capacity | KW | 8 | 15 | 25 | 35 | 40 | ||||
| Air flow | m³/h | 3000 | 5200 | 7800 | 105000 | 13000 | ||||
| External static pressure | Pa | 150 | 0 | 150 | 0 | 200 | 0 | 200 | 250 | |
| Running Noise | Db(A) | ≤64 | ≤62 | ≤68 | ≤66 | ≤70 | ≤68 | ≤72 | ≤72 | |
| Capacity Control | % | 0,100 | 0,50,100 | 0,33,66,100 | 0,50,100 | 0,50,100 | ||||
| Tempreture Control Range | ºC | Winter 18~23ºC±1ºC,Summer 22-23ºC±1ºC | ||||||||
| Tempreture Control Range | % | 50~70±5 | ||||||||
| Power Supply | 3Phase-380V-50Hz | |||||||||
| Cooling power consumption | KW | 5.49 | 5.13 | 10.42 | 9.69 | 16.32 | 14.53 | 21.9 | 24.8 | |
| Total consumption | KW | 16.33 | 16.21 | 31.1 | 60.68 | 52.61 | 80.87 | 68.24 | 75.89 | |
| Refrigerant | R22 | |||||||||
| Throttling | Externally balanced thermostatic expansion valve | |||||||||
| Compressor | Type | Fully hermetic Scroll type | ||||||||
| Evaprator | Type | Copper tube hydrophilic aluminum fin | ||||||||
| Water-cooled condenser | Type | Shell and Tube type | ||||||||
| Water Flow | m³/h | 3.9 | 7.6 | 10.7 | 14.6 | 17.5 | ||||
| Water resistance | kPa | 22 | 29 | 31 | 34 | 35 | ||||
| Pipe size | DN | 40 | 40 | 50 | 65 | 65 | ||||
| Air-cooled condenser | Type | Copper tube hydrophilic aluminum fin | ||||||||
| Fan Motor | KW | 0.24 | 0.6×2 | 0.6×2 | 0.8×2 | 0.8×2 | ||||
| Fan | Type | Centrifugal,double inlet,Low noise | ||||||||
| Drive | Belt Drive | |||||||||
| Fan Motor | KW | 1.5 | 1.1 | 2.2 | 1.5 | 4 | 2.2 | 5.5 | 5.5 | |
| Air Filter | Initial Effact(G4)+Medium effect(F8) | |||||||||
| Humidifier | Type | Electrode steam | ||||||||
| Humidification | KG/H | 4 | 8 | 15 | 15 | 15 | ||||
| Model SHKR/L- | 100WJH | 120WJH | 140WJH | 160WJH | 190WJH | 260WJH | ||
| Air flow direction | Top | Top | Top | Top | Top | Top | ||
| Cooling Capacity | KW | 100 | 120 | 140 | 160 | 190 | 260 | |
| Electric Heating Capacity | KW | 45 | 50 | 55 | 60 | 70 | 80 | |
| Air flow | m³/h | 16000 | 20000 | 22000 | 25000 | 30000 | 40000 | |
| External static pressure | Pa | 300 | 350 | 350 | 350 | 400 | 450 | |
| Running Noise | Db(A) | ≤75 | ≤76 | ≤77 | ≤79 | ≤80 | ≤82 | |
| Capacity Control | % | 0,33,66,100 | 0,25,50,75,100 | Stepless control | ||||
| Tempreture Control Range | ºC | Winter 18~23ºC±1ºC,Summer 22-23ºC±1ºC | ||||||
| Tempreture Control Range | % | 50~70ºC±5ºC | ||||||
| Power Supply | 3Phase-380V-50Hz | |||||||
| Cooling power consumption | KW | 31.96 | 36 | 43.7 | 48.99 | 59.3 | 77 | |
| Total consumption | KW | 88.32 | 103.4 | 116.2 | 163.6 | 163.7 | 191.8 | |
| Refrigerant | R22 | |||||||
| Throttling | Externally balanced thermostatic expansion valve | |||||||
| Compressor | Type | Fully hermetic Scroll type | Screw Type | |||||
| Evaprator | Type | Copper tube hydrophilic aluminum fin | ||||||
| Water-cooled condenser | Type | Shell and Tube | ||||||
| Water Flow | m³/h | 22.6 | 25.7 | 30.2 | 34 | 42.8 | 58.1 | |
| Water resistance | kPa | 37 | 38 | 41 | 43 | 44 | 46 | |
| Pipe size | DN | 65 | 80 | 80 | 80 | 100 | 100 | |
| Air-cooled condenser | Type | Copper tube hydrophilic aluminum fin | ||||||
| Fan Motor | KW | 0.8×3 | 0.8×3 | 0.8×4 | 0.8×4 | 0.8×6 | 0.8×6 | |
| Fan | Type | Centrifugal,double inlet,Low noise | ||||||
| Drive | Belt Drive | |||||||
| Fan Motor | KW | 7.5 | 7.5 | 11 | 11 | 15 | 18.5 | |
| Air Filter | Initial Effact(G4)+Medium effect(F8) | |||||||
| Humidifier | Type | Electrode steam | ||||||
| Humidification | KG/H | 15 | 23 | 23 | 32 | 45 | 45 | |
| Note: | ||||||||
| 1. The norminal capacity is based on: Cooling: the temperature of the inlet dry/wet bulb is 23 °C/17 °C, and the temperature of the cooling water inlet and outlet is 30 °C/35 °C. Heating: The air inlet dry bulb temperature is 15 °C, and the steam pressure is 70Kpa. 2. The water-cooled unit is required to be equipped with a cooling tower. 3. The cooling power consumption does not include the auxiliary electric heating power. | ||||||||
